Byte Shield Mag Lock

Title: ByteShield DC-01 — Hand-Built Digital Defense Tool
Custom Edition

v0.2.5

this one has a 1800 mha battery instead of 1000

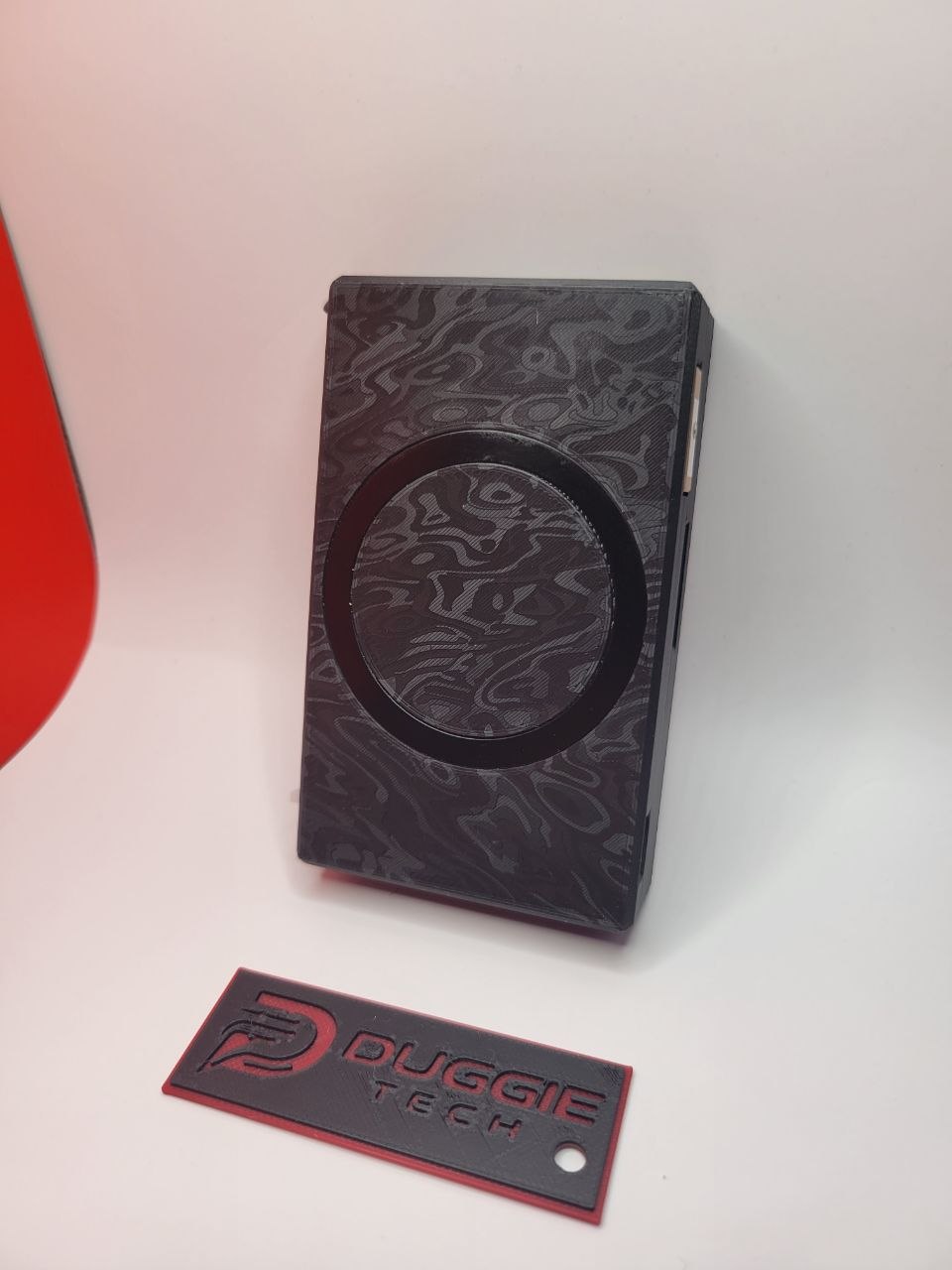

comes with the mag lock ring

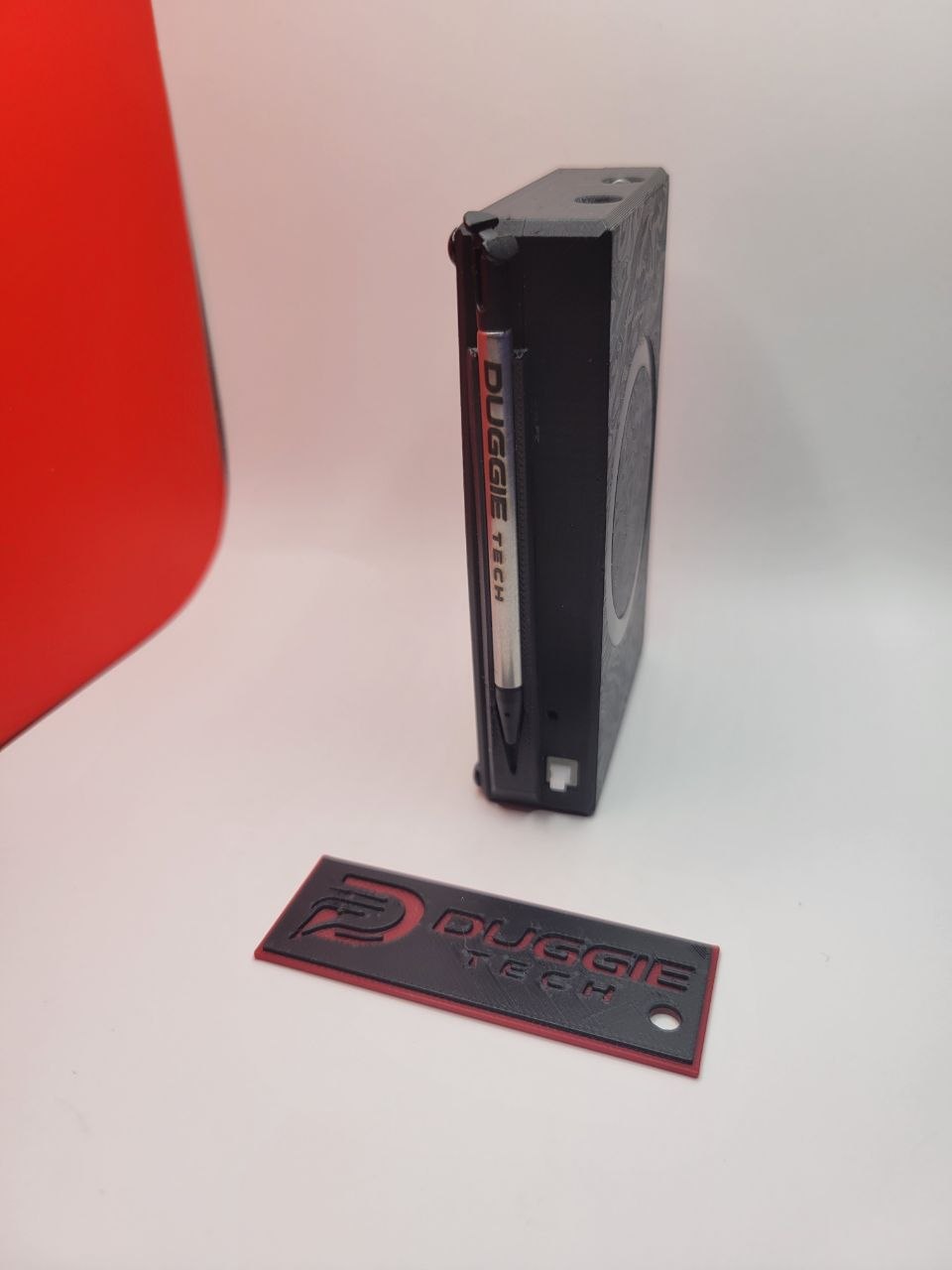

and the new metal stylis

Description:

The ByteShield DC-01 is a hand-built portable security research tool built around the ESP32 platform. Every unit is bench-tested and assembled by hand before it ships. This is not a kit. This is not a preorder. It's ready to go.

What it does:

Leash Lock — Always-on deauthentication attack detector. Runs silently in the background from the moment you power on. No setup required.

WiFi Tools

• Network scanner with RSSI, encryption type, and on-screen keyboard to connect
• Live traffic monitor with auto-scaling graph and channel selector
• Evil Portal Scanner — detects evil twin attacks, probes open networks for captive portal interception, and uses a mesh heuristic to cut down on false positives. Threats are sorted to the top automatically

• Deauth Detection Scanner

• WatchDog Toggle

• Roku Remote UI

BLE Tools

• Full BLE device scanner
• Chameleon Ultra headless control and UI
• Tracker locator — finds AirTags, Tile, and other BLE trackers in range
• Device hunt — lock onto a target and close in by signal strength
• Pwnagotchi hunt

GPS

• Flock detection basied on location custom maps baised on location
• Manual Add cameras 1 click

• Update Database baised on area and size
• GPS Debug

RFID / NFC

• Read, clone, and emulate RFID cards via onboard PN532
• On-device log viewer for previously scanned cards
• NEDF reading
• Log

SD Card Explorer — Full file browser with drag scroll, rename, and delete

Tools Menu — Brightness, rotation, invert, speaker test, timeout, on-device security guide and testing guide, IR access TX RX

Info Screen — Live RAM, CPU, flash, uptime, and hardware status. Auto-refreshes every 2 seconds.

Hardware:

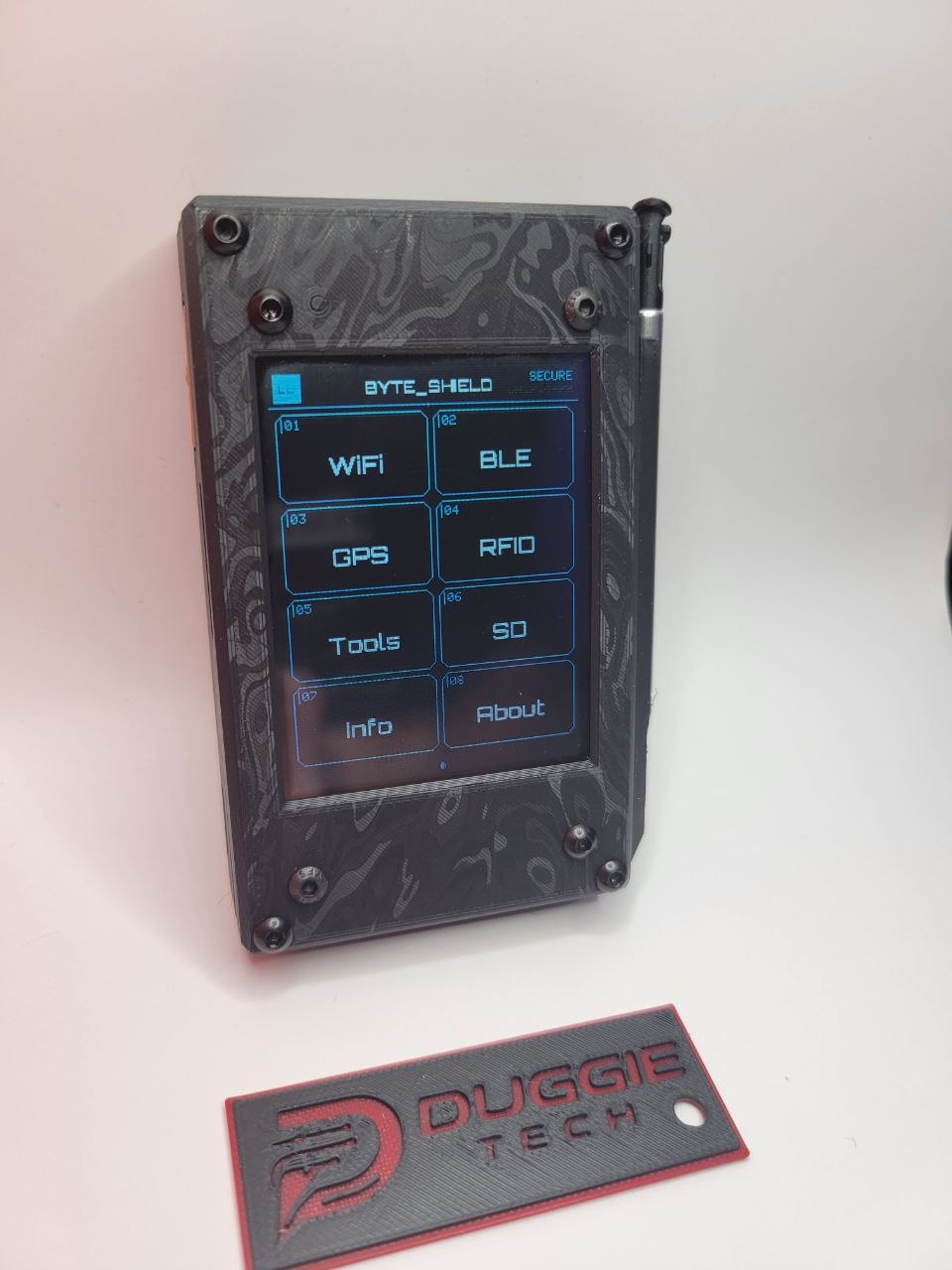

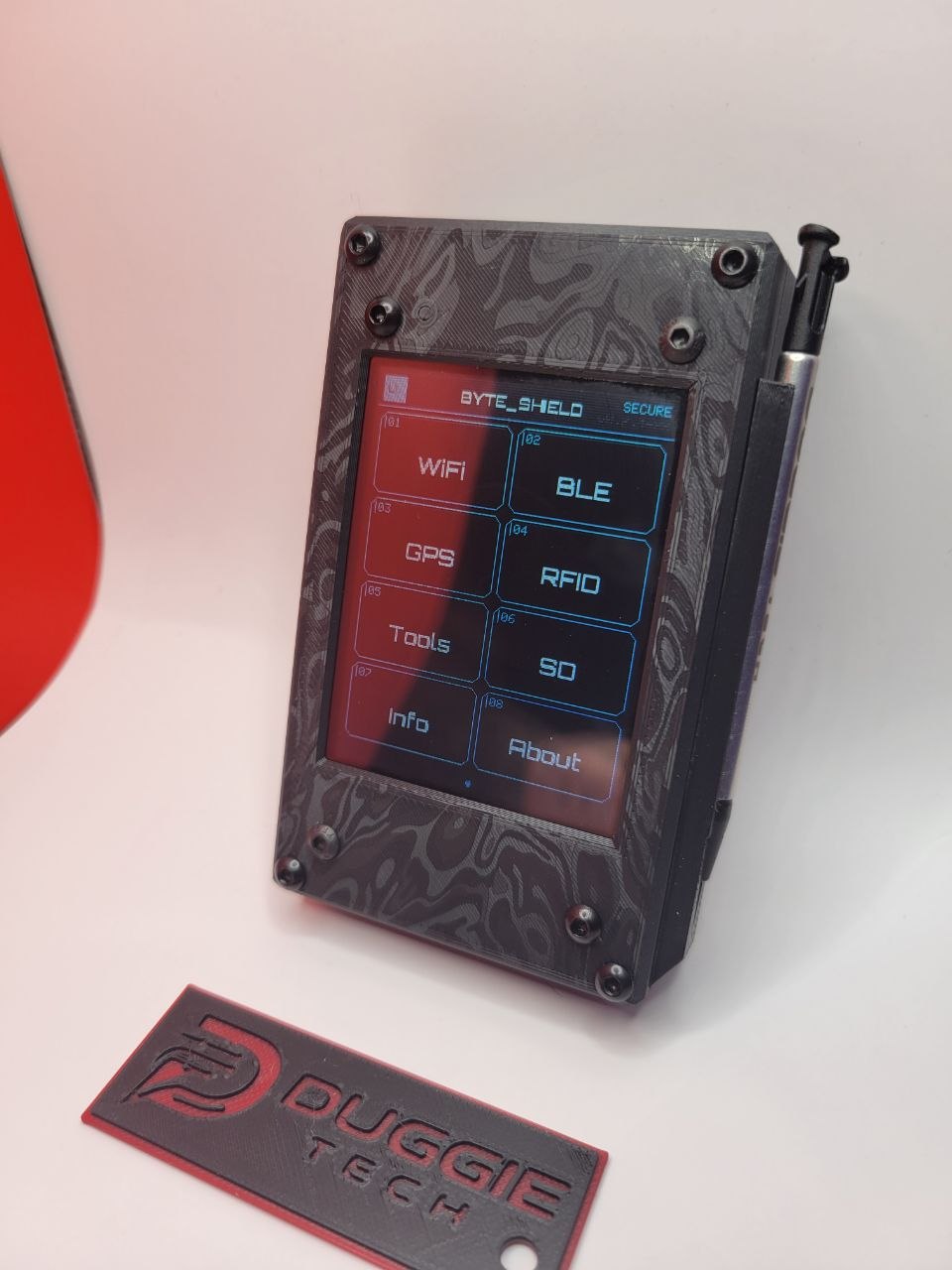

• ESP32 CYD (2.8" ILI9341 320×240 display)
• Resistive touchscreen
• PN532 RFID/NFC module
• IR transmit and receive
• ATGM GPS
• Onboard speaker
• SD card slot
• Built-in LiPo charging

What's in the box:

• ByteShield DC-01, fully assembled and tested

• Ready to use out of the box

A note from Duggie: I build these myself. Every one gets powered up, every feature gets tested before it goes in a box.

— Duggie | duggietech.com

"CrimsonWolf" "IrishGhost" "BKbroiler" - thank you for pushing me to make this without you there is no Duggie Tech

Thank you FOR beta testing, ideas and help you guys are the best.

VW-WOB

GH0ST3CH
_.v1ru5._ -

ByteShield DC-01 is intended for authorized security research, education, and network administration on networks you own or have explicit permission to test.
